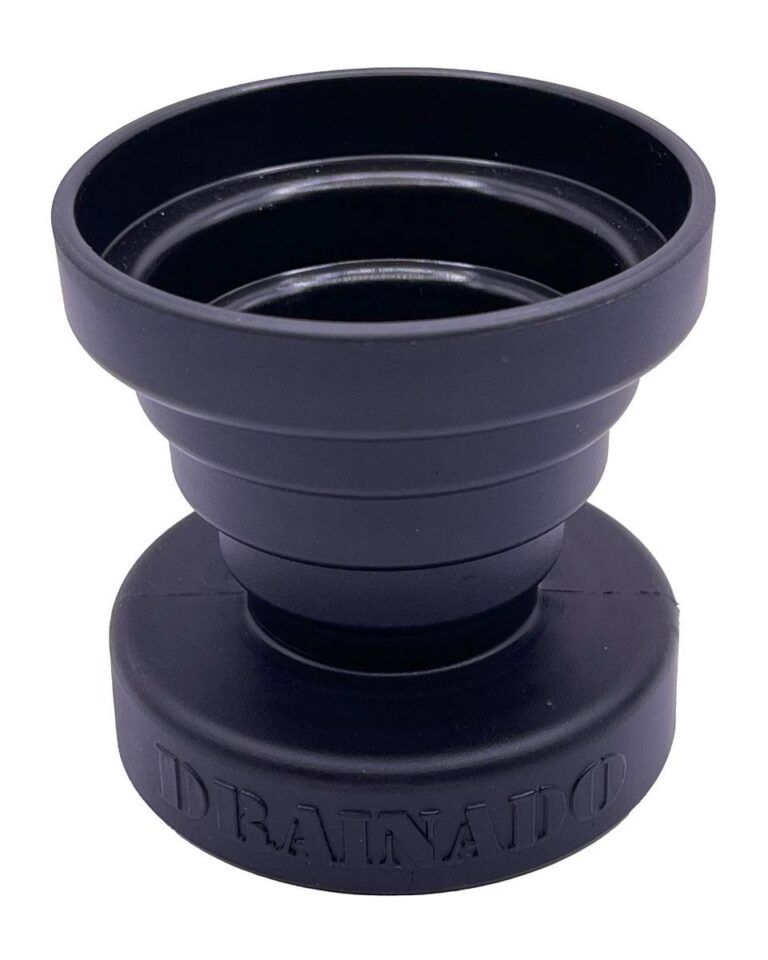

VIPER DRAINADO™
15-in-1 Wet/Dry Vacuum Adapter
Viper Drainado is a single molded adapter that connects any wet/dry vacuum to condensate and drain lines, covering 15 hose-to-pipe configurations with one flexible component. Clearing blocked lines has traditionally meant stacking PVC reducers, taping the assembly to a vacuum hose and holding the joint together by hand while adhesive residue builds up on the pipe. Drainado replaces that improvised setup, sliding onto the pipe, sealing under full vacuum and gripping tightly enough to hold its position hands-free.
One Molded Adapter Replaces a Truck Full of Fittings
For techs, that means no more digging through a bin of single-purpose parts on every water leak call. It matches three wet/dry vacuum hose sizes to five PVC pipe sizes from ¾ inch to 2 inches, and works on both Schedule 40 and Schedule 80 PVC. It clears condensate lines, sink traps, branch drains and other small-diameter drainage systems by suction or pressure, and useful across both HVACR and plumbing service calls.
- Tight seal holds vacuum pressure, no suction loss
- 15 configurations: fits 1-1/4", 1-7/8" and 2-1/2" vacuum hoses to 3/4", 1", 1-1/4", 1-1/2" and 2" PVC
- Compatible with Schedule 40 and Schedule 80 PVC
- Compact design ideal for storage and portability
- Durable, flexible thermoplastic polyester elastomer construction
- Tolerant of bleach, vinegar and pan treatment chemicals
PART# RT820D
VIDEO & DIRECTIONS
- Connect to the vacuum hose. Slide the Drainado end onto your wet/dry vacuum hose. If your hose has a tapered end, flip it around so the flat side seats into the adapter instead.
- Connect to the pipe and turn on the vacuum. Slide the other end of the Drainado onto the condensate or drain pipe, then switch on the vacuum. The seal holds itself in place, so there’s no need to hold the connection by hand while it runs.
Note: Drainado is designed for temporary use only. It is not intended for permanent attachment, and should never be glued, clamped or tie-wrapped to a hose or pipe. It simply slides into place to hold the connection while in use, then comes back off.
